ARM Motorsports
MK7 GTI CHARGE PIPES
Available to order
$297.00
Fitment support
Shipping & returns
Euro focused
Confirm model year and installation requirements before ordering.
Specs
| SKU | MK7ICP |
|---|---|
| Category | Charge Pipes |
| Brand | ARM Motorsports |
Fitment
Fitment varies by chassis, trim, and supporting modifications. Confirm compatibility before ordering or contact the AE crew with your vehicle details.
Shipping
Delivery options and applicable taxes are confirmed at checkout. Contact us before ordering if you need a specific delivery date.
Shipping policyDescription
- 30 Day Money-Back Guarantee | IN STOCK
HIGHLIGHTS
• REPLACES PLASTIC OEM PIPING
• IMPROVED AIRFLOW
• FASTER TURBO SPOOL
• METH INJECTION CAPABLE
• IMPROVED AIRFLOW
• FASTER TURBO SPOOL
• METH INJECTION CAPABLE
PROFILE

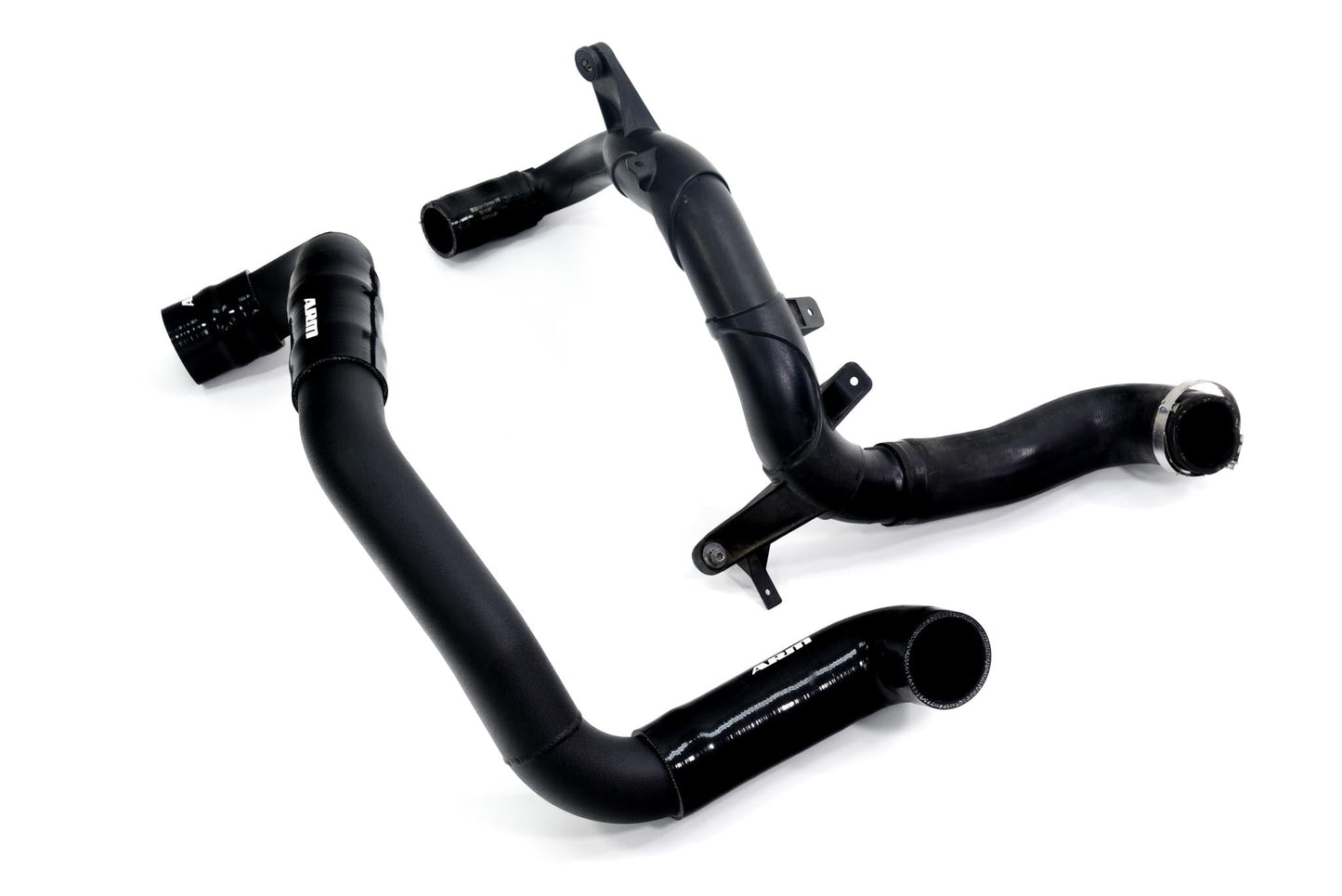

The ARM Upgraded Charge Piping Kit for the MQB platform improves airflow by completely replacing the restrictive 1.5" factory plastic piping to and from your intercooler with full 2.5" T6061 aluminum piping coated in a durable wrinkle black finish.

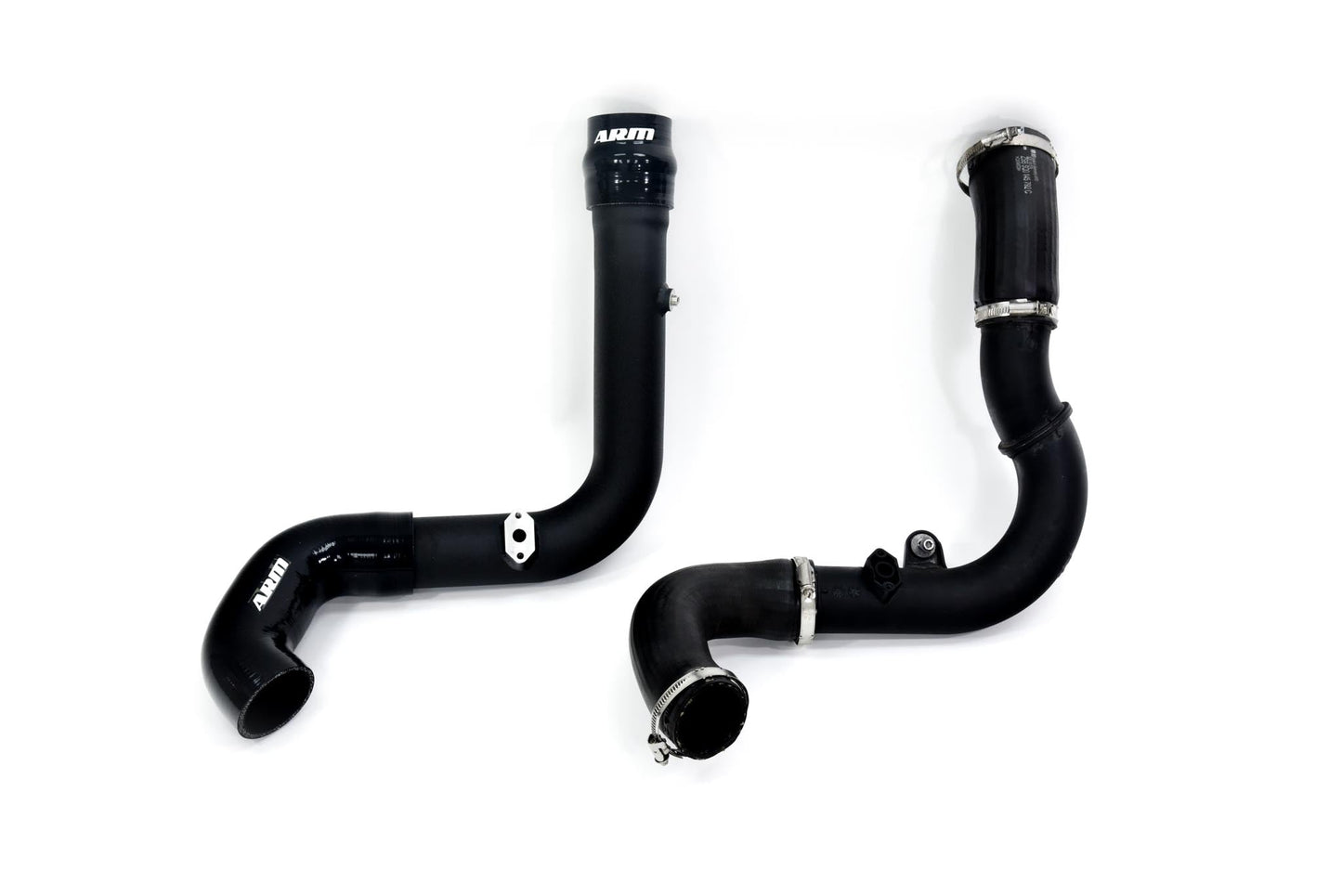

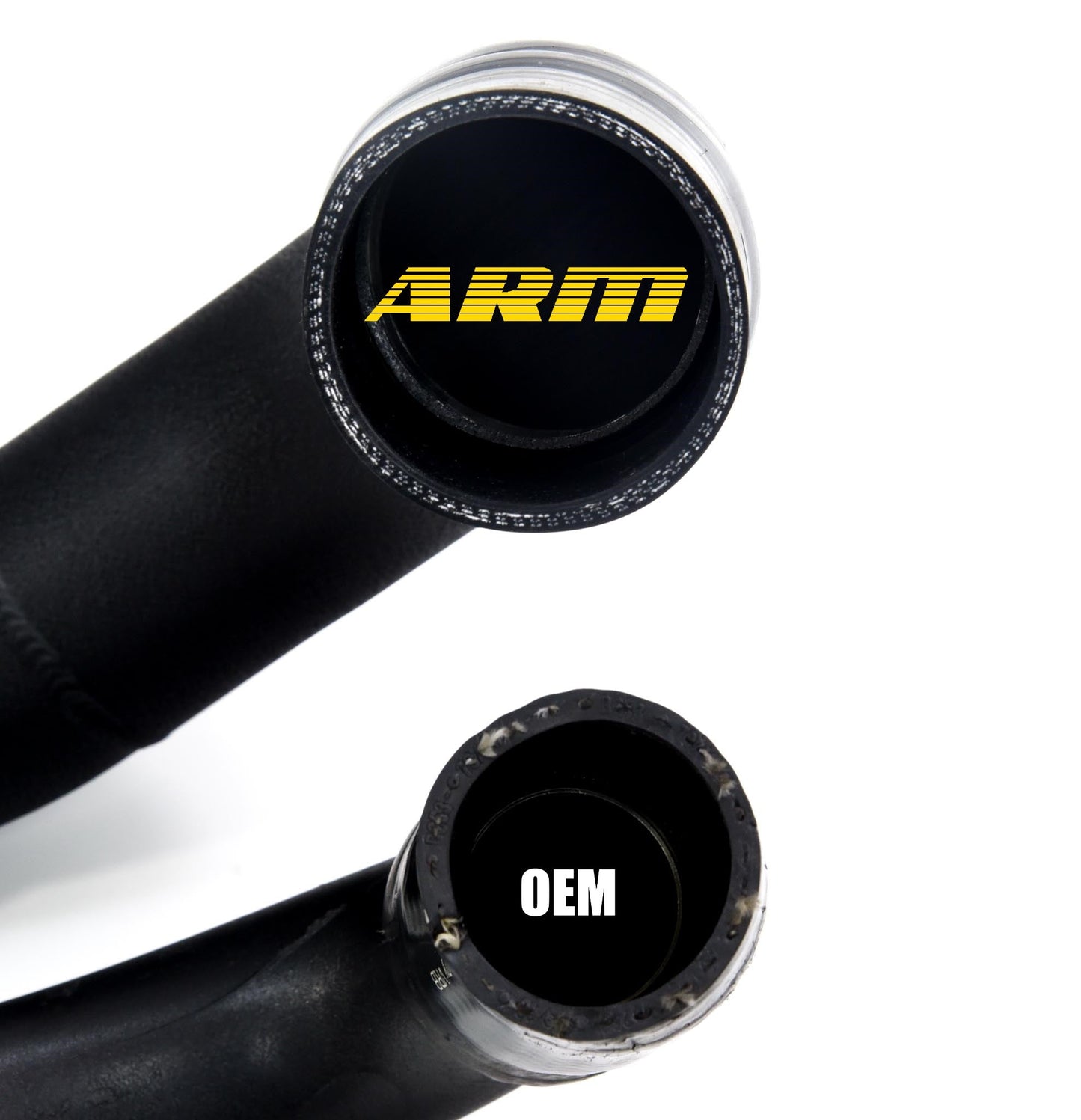

The factory charge piping on the MQB platform consists of quite narrow 1.5" plastic piping with multiple geometrical changes. The ARM Charge Piping Upgrade is engineered with a consistent 2.5" diameter throughout the entire system.

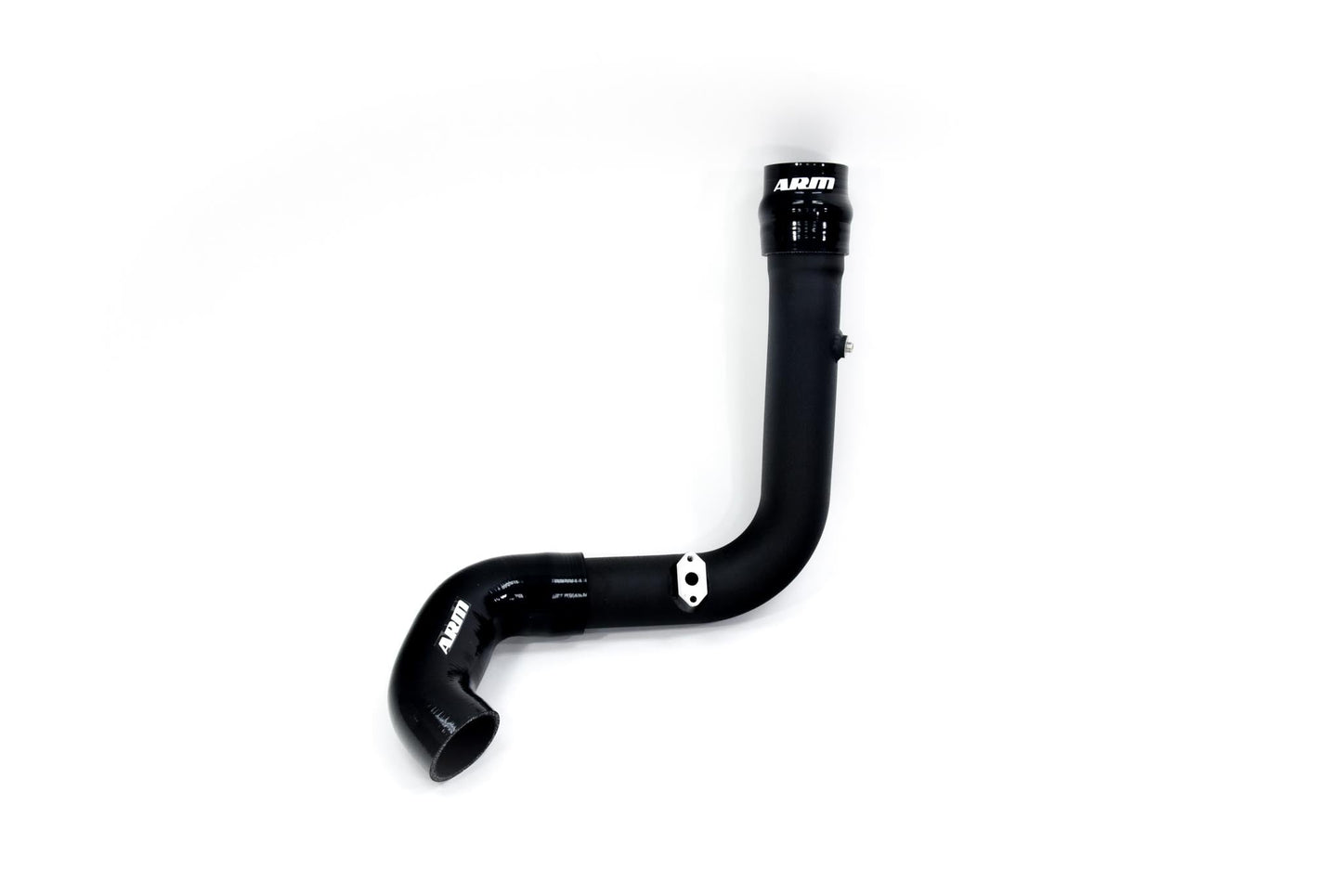

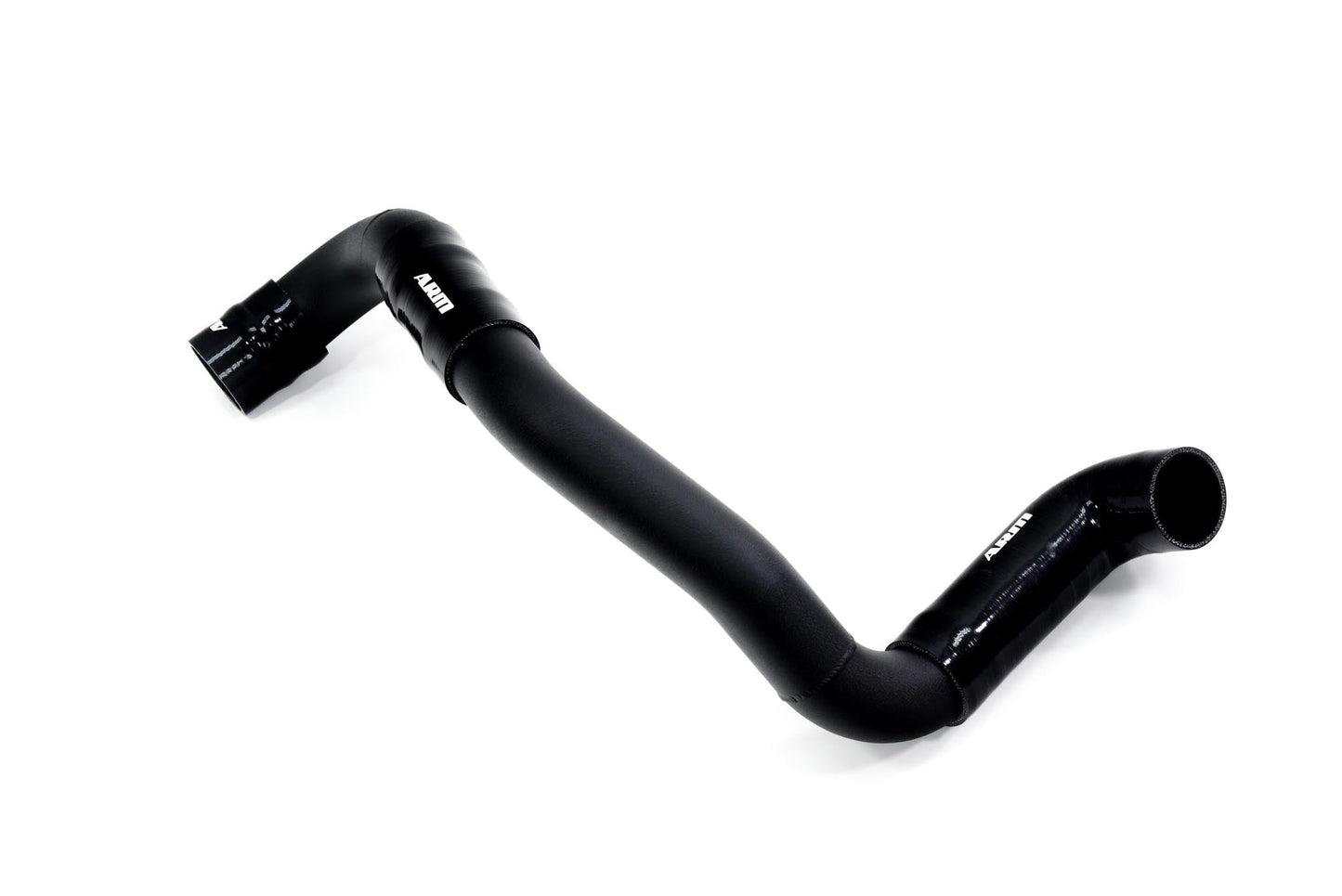

The ARM Charge Piping Upgrade consists of two main sections. The first is the turbo outlet pipe which upgrades the section of piping from the turbo to the intercooler.
The second section is the throttle body component which upgrades the piping from the intercooler to the throttle body.

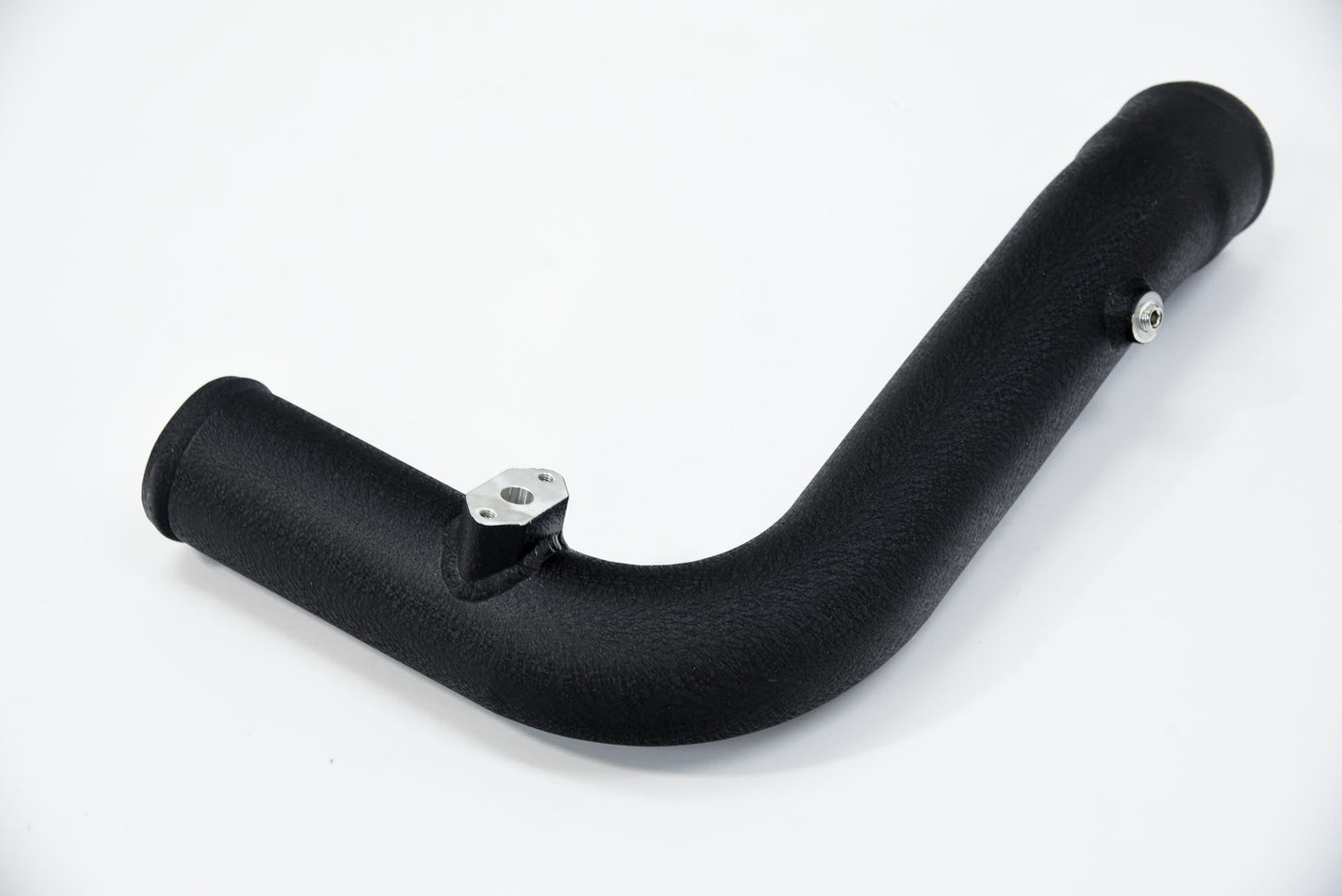

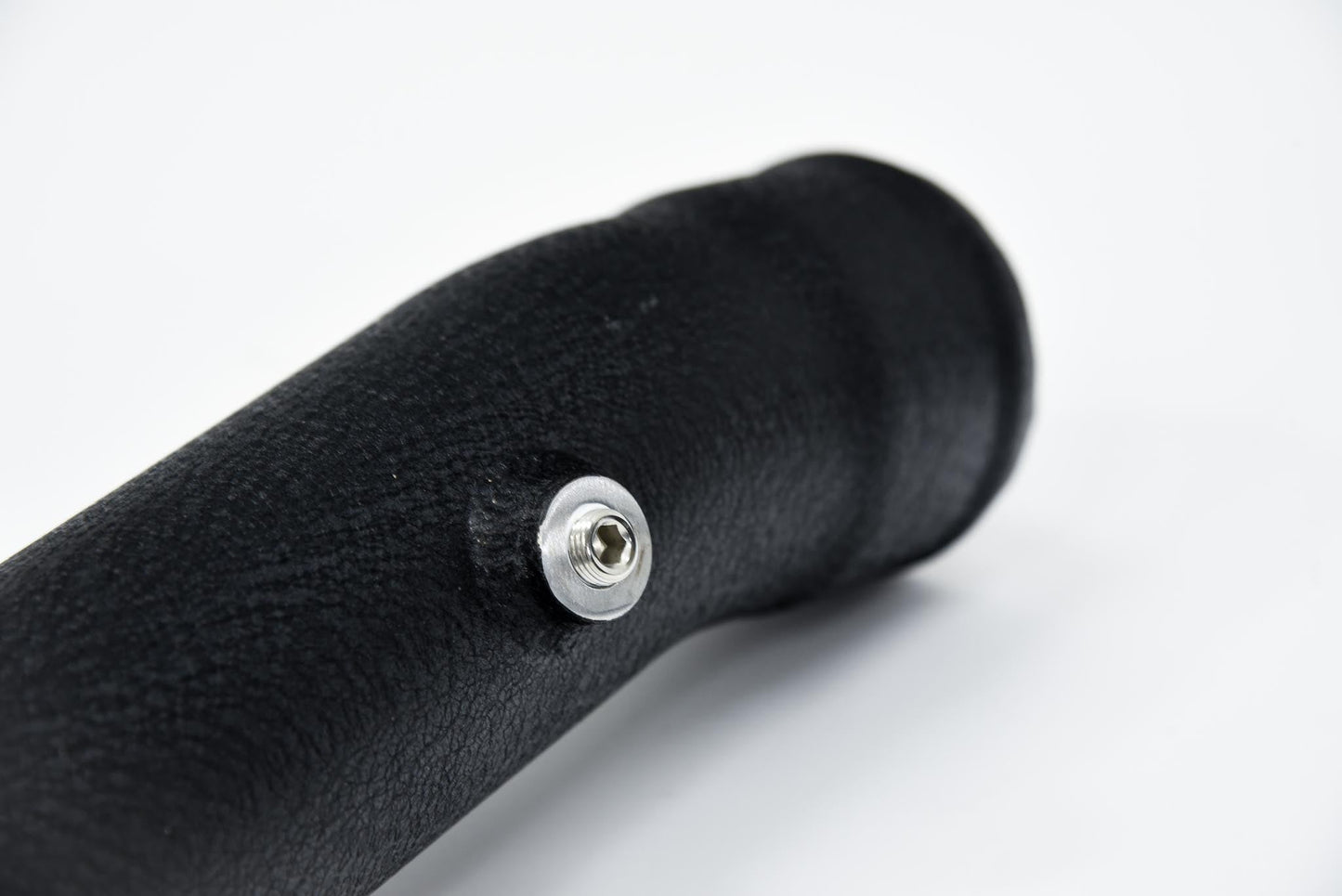

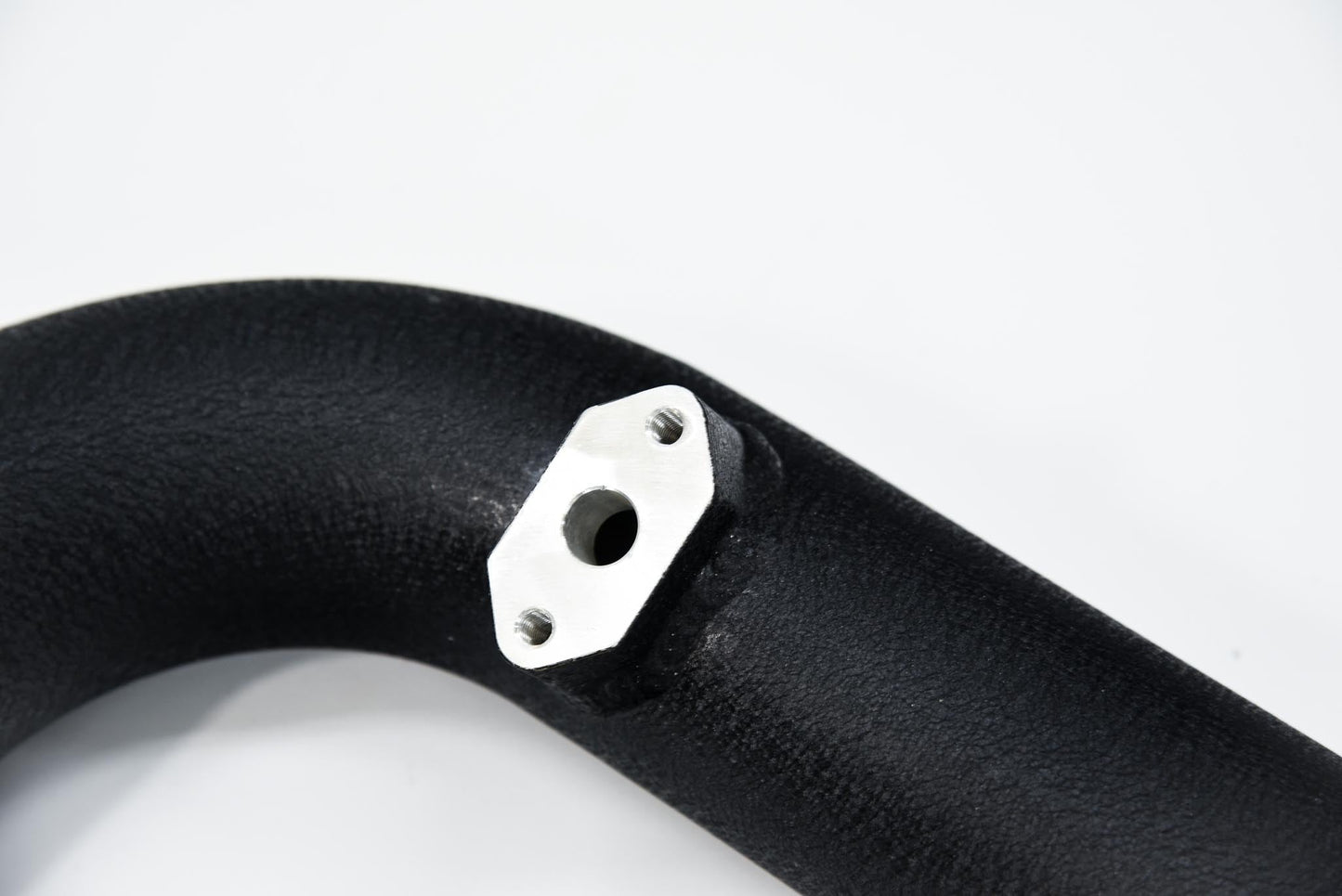

This second section of piping has an integrated 1/8" NPT port for methanol or nitrous injection in the ideal location, after the intercooler but before the throttle body.
CONSTRUCTION

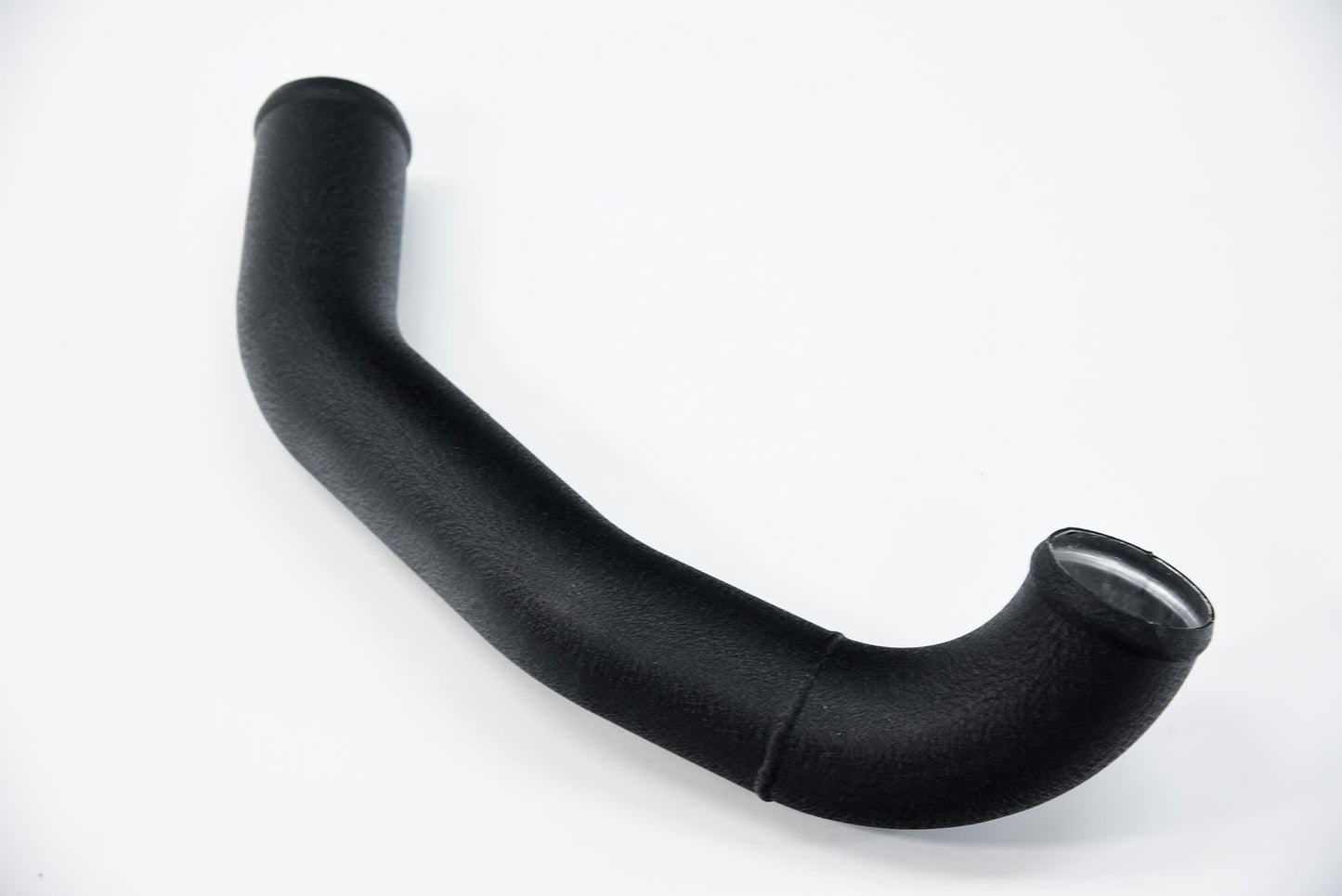

All of the aluminum piping in the ARM Charge Piping Upgrade is constructed of T6061 2.5" aluminum piping coated in a durable wrinkle black finish.

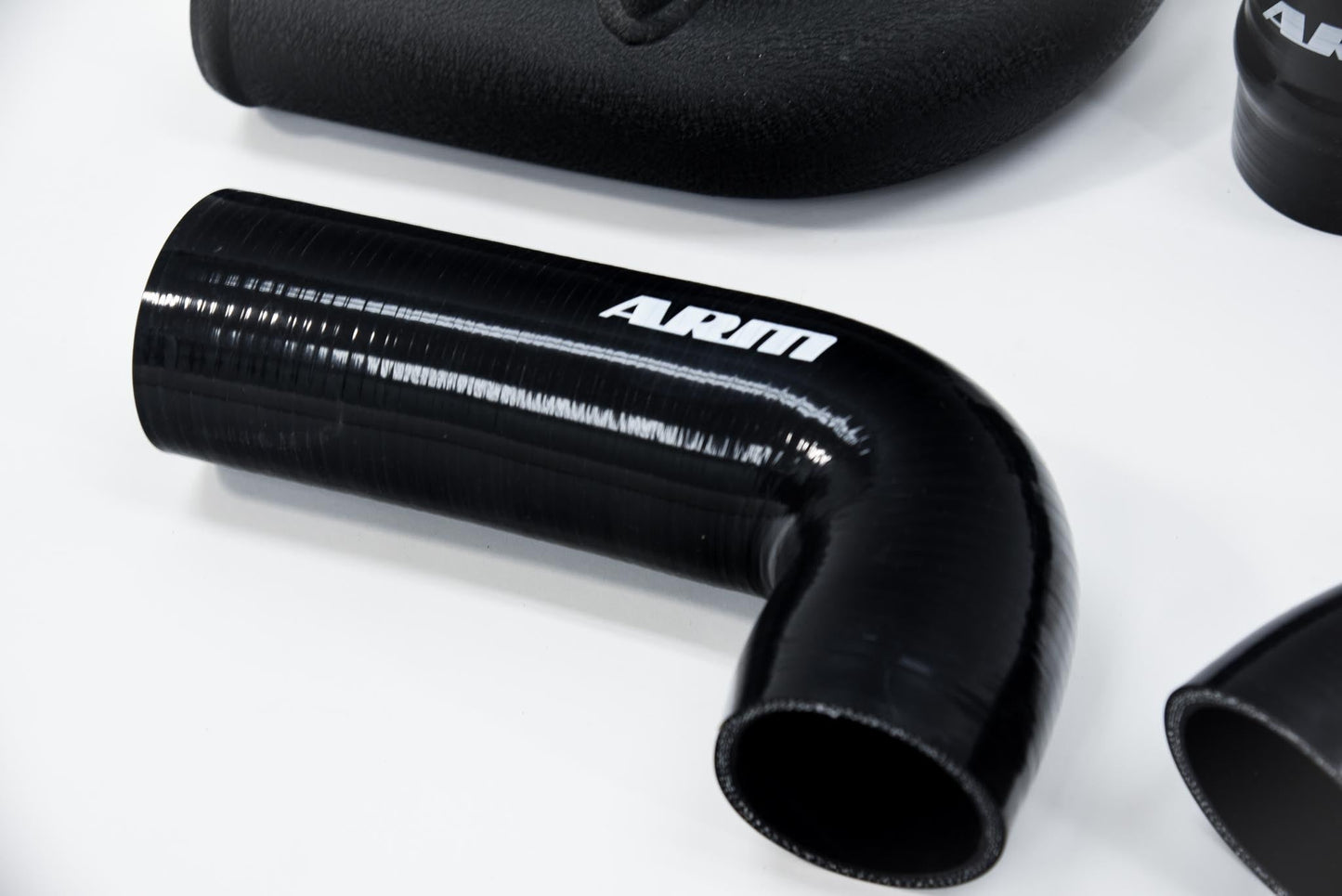

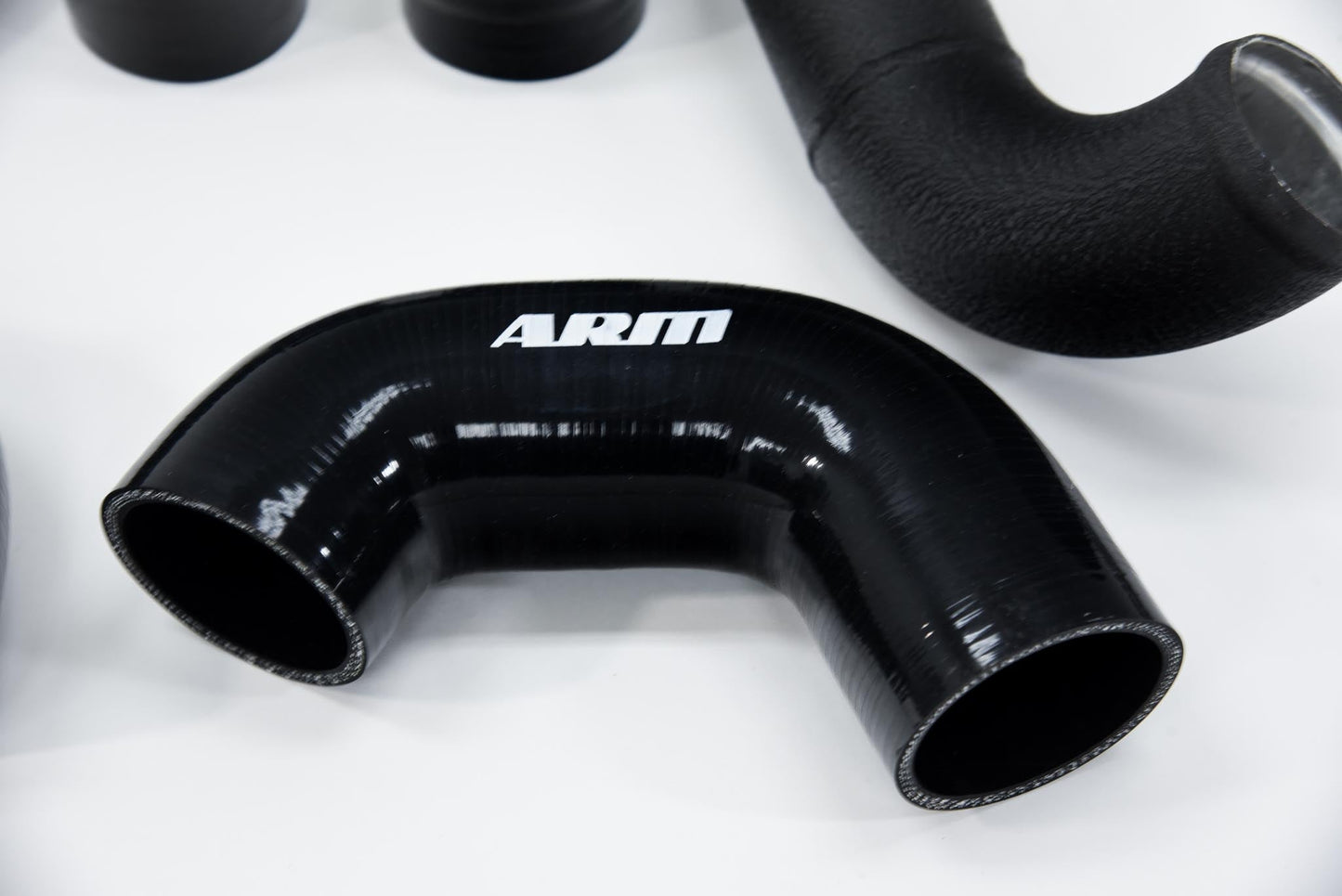

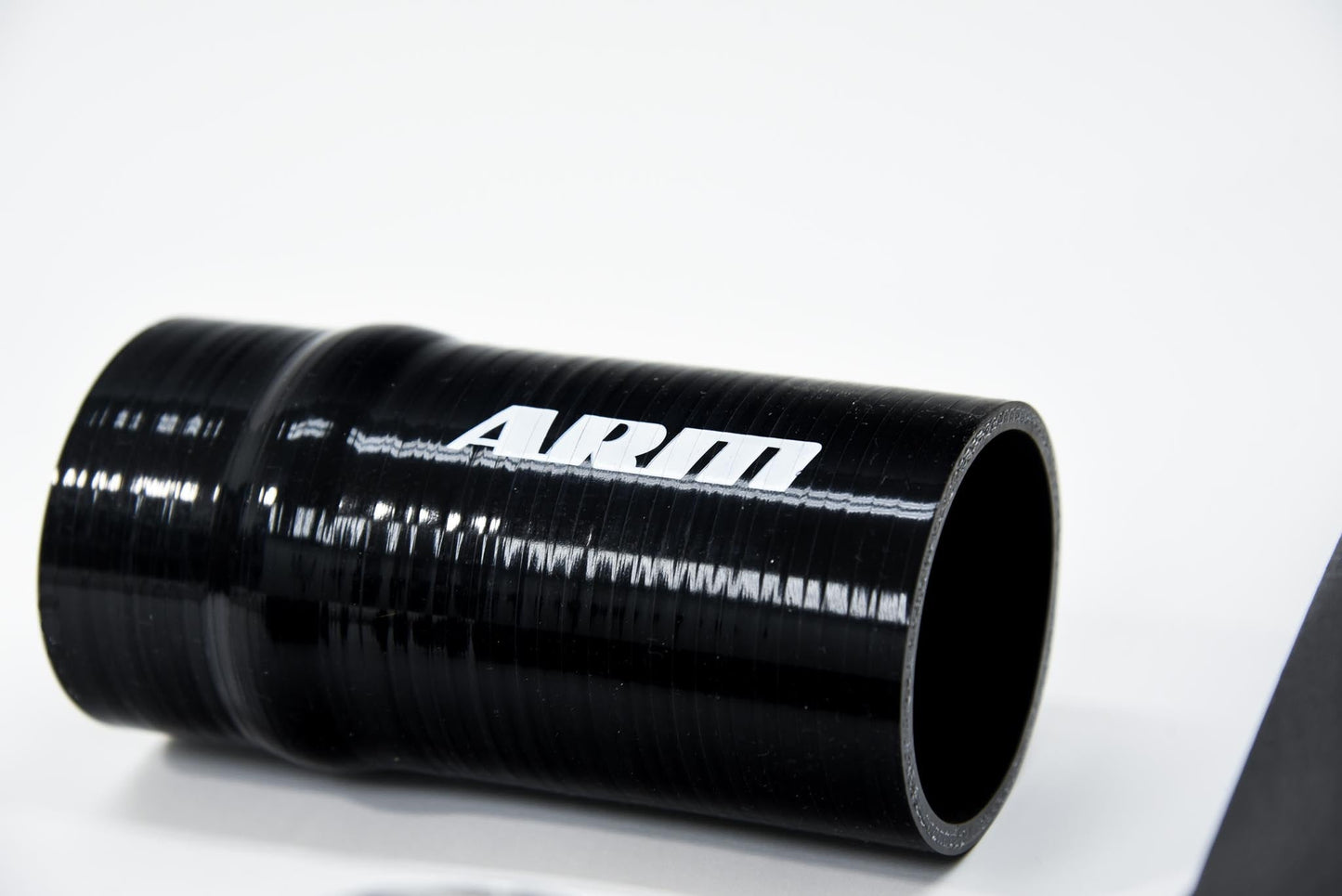

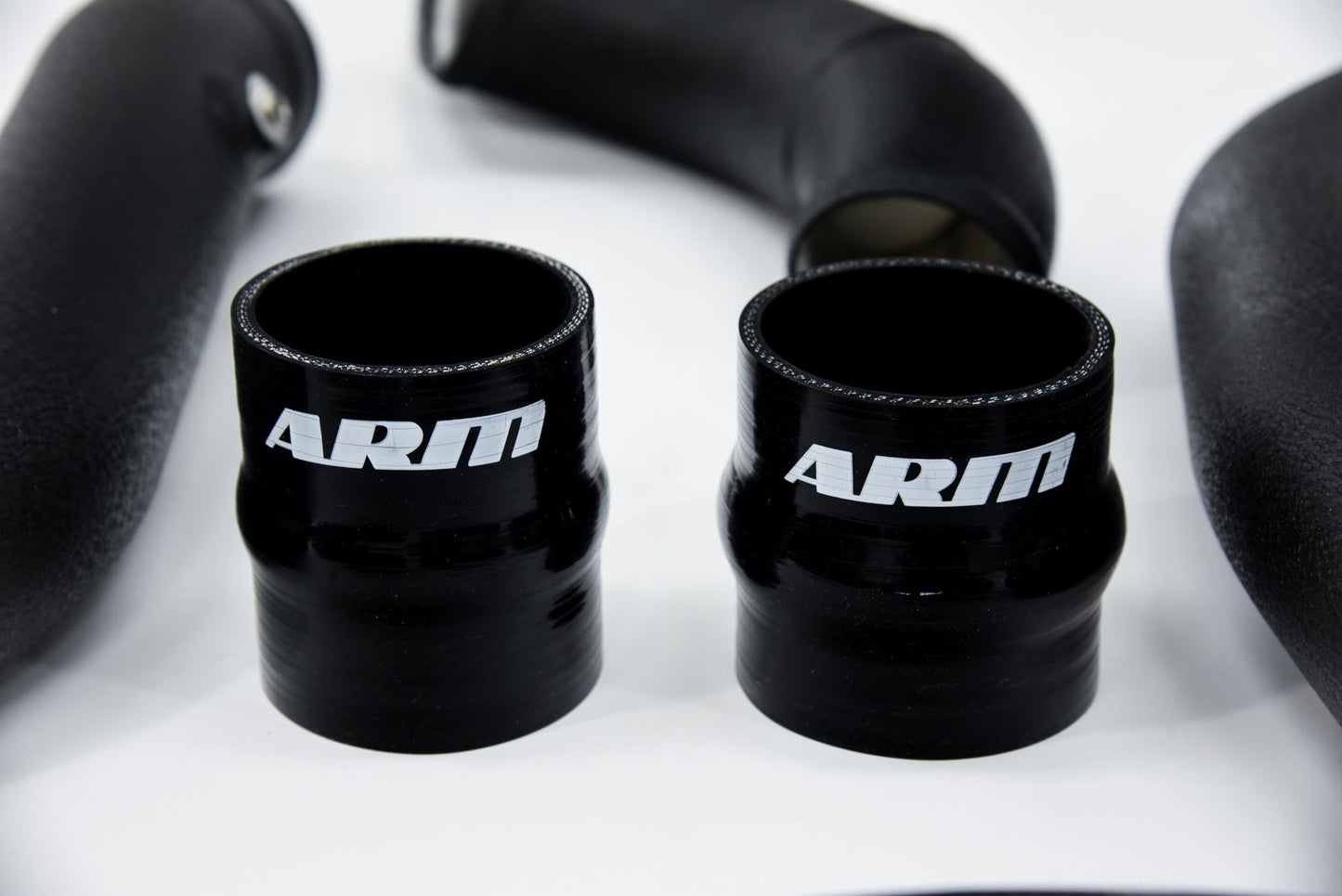

All of the silicone couplers in the ARM Charge Piping Upgrade are 6 layer reinforced silicone, capable of withstanding boost from even the most demanding builds without deforming or expanding under pressure. Accompanying the silicone couplers are constant-tension T-bolt clamps for securing all of the connections in the ARM MQB Charge Piping Upgrade.

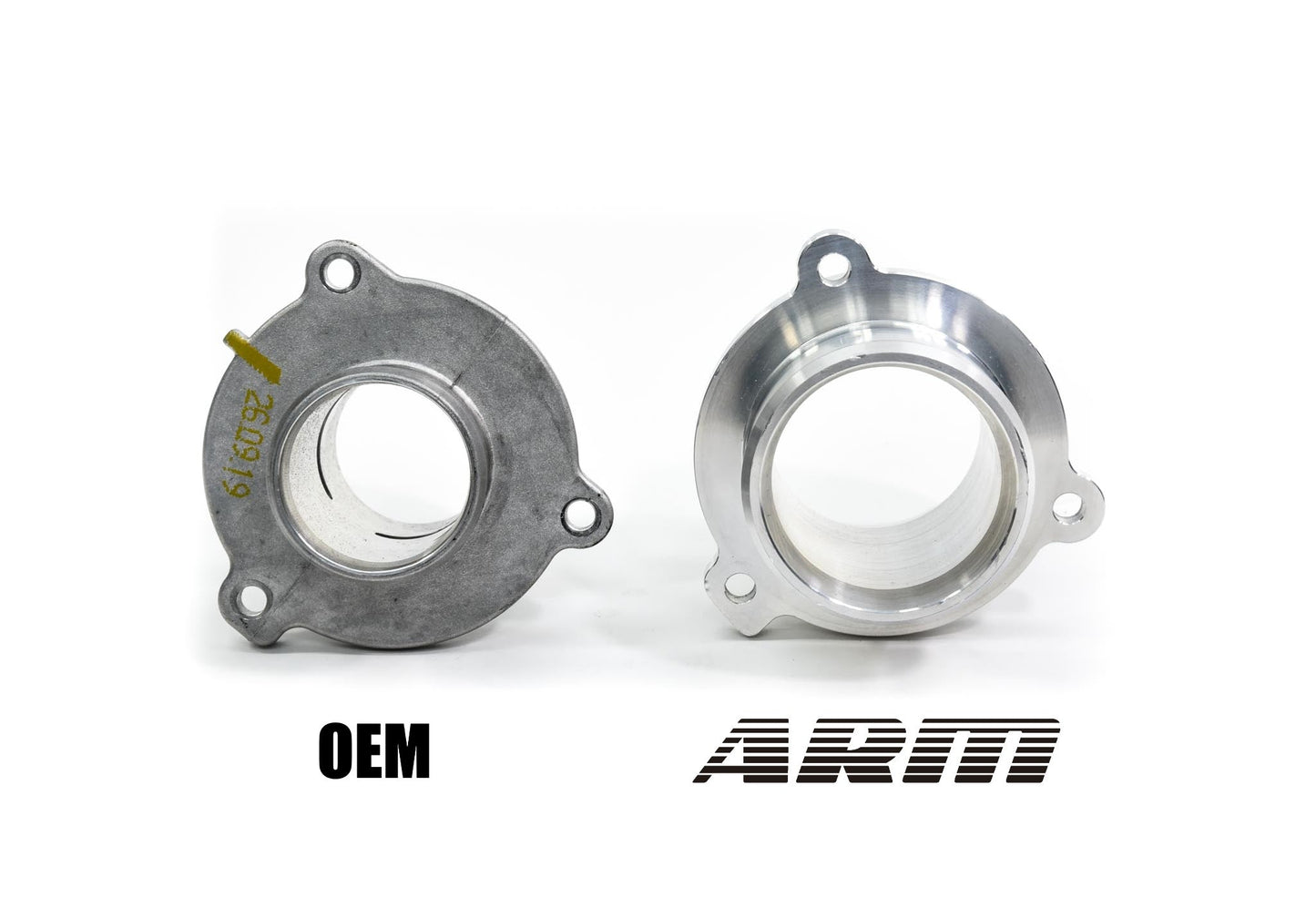

The ARM MQB Charge Piping Upgrade comes complete with the ARM precision CNC machined Turbo Muffler Delete. While using the stock turbo muffler delete with its 1.8" size would have to expand to meet the ARM Charge Piping size of 2.5". The ARM Turbo Muffler Delete offers a smooth transition from the IS20 or IS38 turbo to the first section of charge piping by maintaining the 2.5" diameter.
IN THE BOX
• ARM MQB Charge Piping
• ARM Turbo Muffler Delete
• ARM Silicone Couplers + Clamps
• ARM Turbo Muffler Delete
• ARM Silicone Couplers + Clamps
• ARM Lifetime Replacement Warranty
FITMENT GUIDE

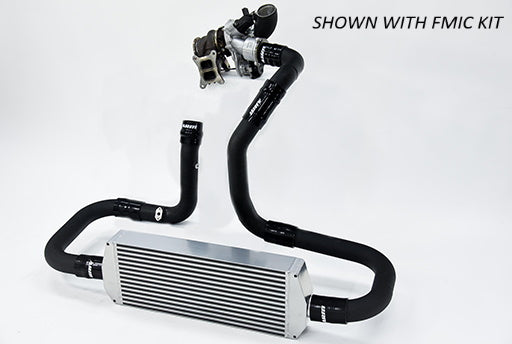

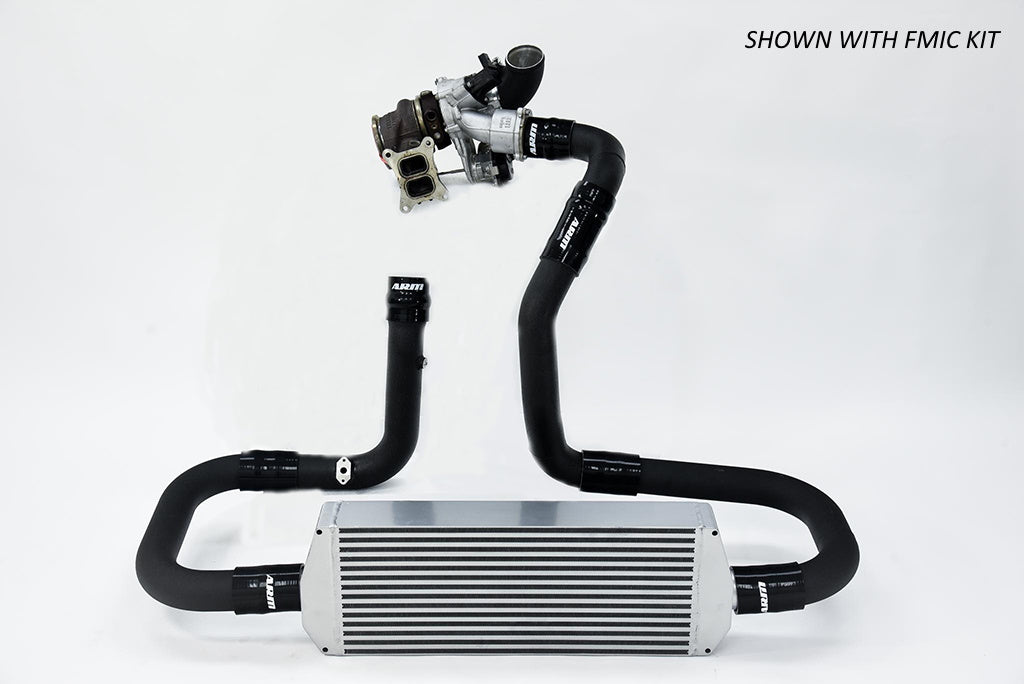

The ARM MQB Charge Piping Upgrade fits both the OEM intercooler and the ARM FMIC Kit. The ARM Charge Piping Upgrade will also fit stock-location upgraded intercoolers that also fit the stock charge piping.
| Make | Model | Submodel | Engine |
|---|---|---|---|
| Audi | 8V S3 | Quattro | 2.0T |
| Audi | A3 8V | FWD | 1.8T |
| Audi | A3 8V | FWD | 2.0T |
| Audi | A3 8V | Quattro | 2.0T |
| Volkswagen | Alltrack | All | 1.8T Gen3 |
| Volkswagen | Golf VII | GTI | 1.8T Gen3 |
| Volkswagen | Golf VII | Hatchback | 1.8T Gen3 |
| Volkswagen | Golf VII | Sportwagen | 1.8T Gen3 |
| Volkswagen | Jetta VII GLI | Sedan | 2.0L Gen3 |
| Volkswagen | Golf VII | GTI | 2.0T Gen3 |
| Volkswagen | Golf VII | Hatchback | 2.0T Gen3 |
| Volkswagen | Golf VII Facelift | FWD | 1.8T Gen3 |
| Volkswagen | Golf VII Facelift | FWD | 2.0T Gen3 |
| Volkswagen | Golf VII R | 4Motion | 2.0T Gen3 |
| Volkswagen | Golf VII R | GTI | 2.0T Gen3 |
| Volkswagen | Golf VII R Facelift | 4Motion | 2.0T Gen3 |
| Volkswagen | Golf VII SportWagen Facelift | 4Motion | 1.8T Gen3 |
| Volkswagen | Golf VII SportWagen Facelift | FWD | 1.8T Gen3 |
