N55 INTAKE - E-SERIES 335i 335xi 135i

N55 INTAKE - E-SERIES 335i 335xi 135i

$247.00
$247.00
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
  • 30 Day Money-Back Guarantee | IN STOCK



HIGHLIGHTS

• Gain up to 11whp
• Precision Machined Turbo Inlet
• Faster Turbo Spool
• Increased Turbo Sound


PROFILE

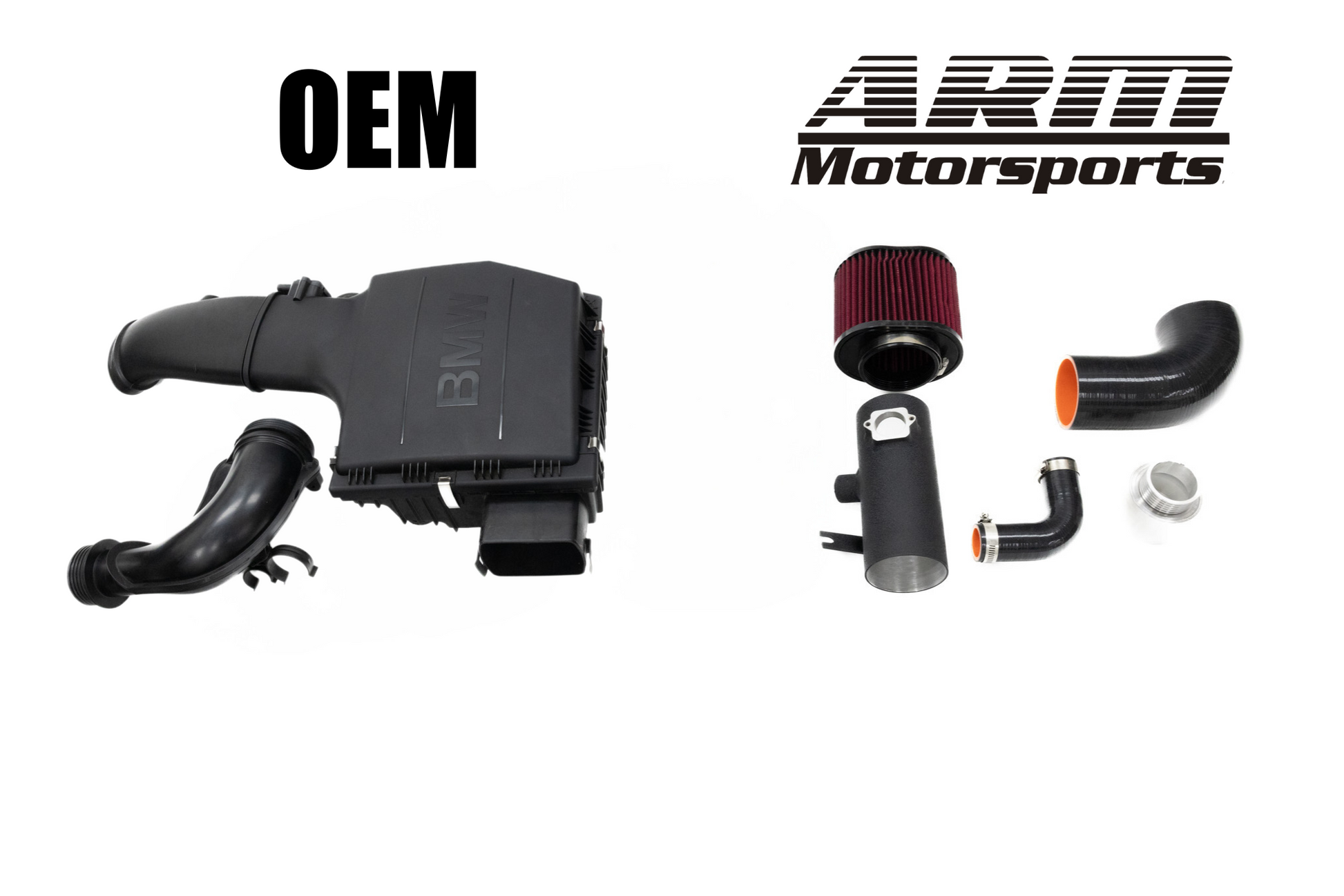

The ARM N55 Intake is a complete induction solution for the N55 found in the E9X chassis!  From the turbo to the air filter the entire system has be redesigned to improve airflow and turbo spool, resulting in more power and better throttle response for your N55 powered BMW.  The ARM N55 Intake shortens the induction pathway from the OEM setup by 68%.  By moving the air filter to behind the headlight area, the path of airflow from the high-flow performance filter to the turbo is greatly improved.

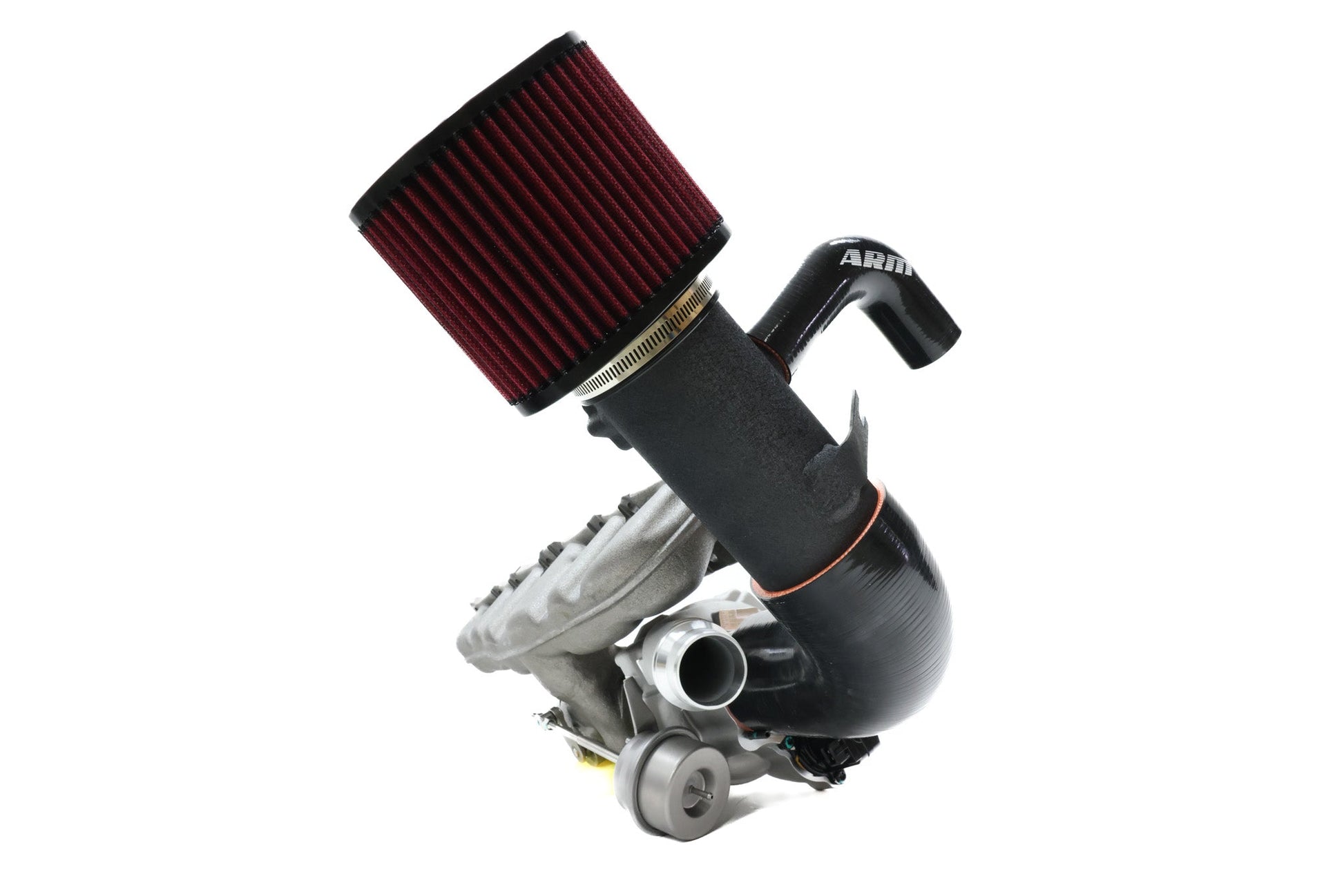

N55 Intake

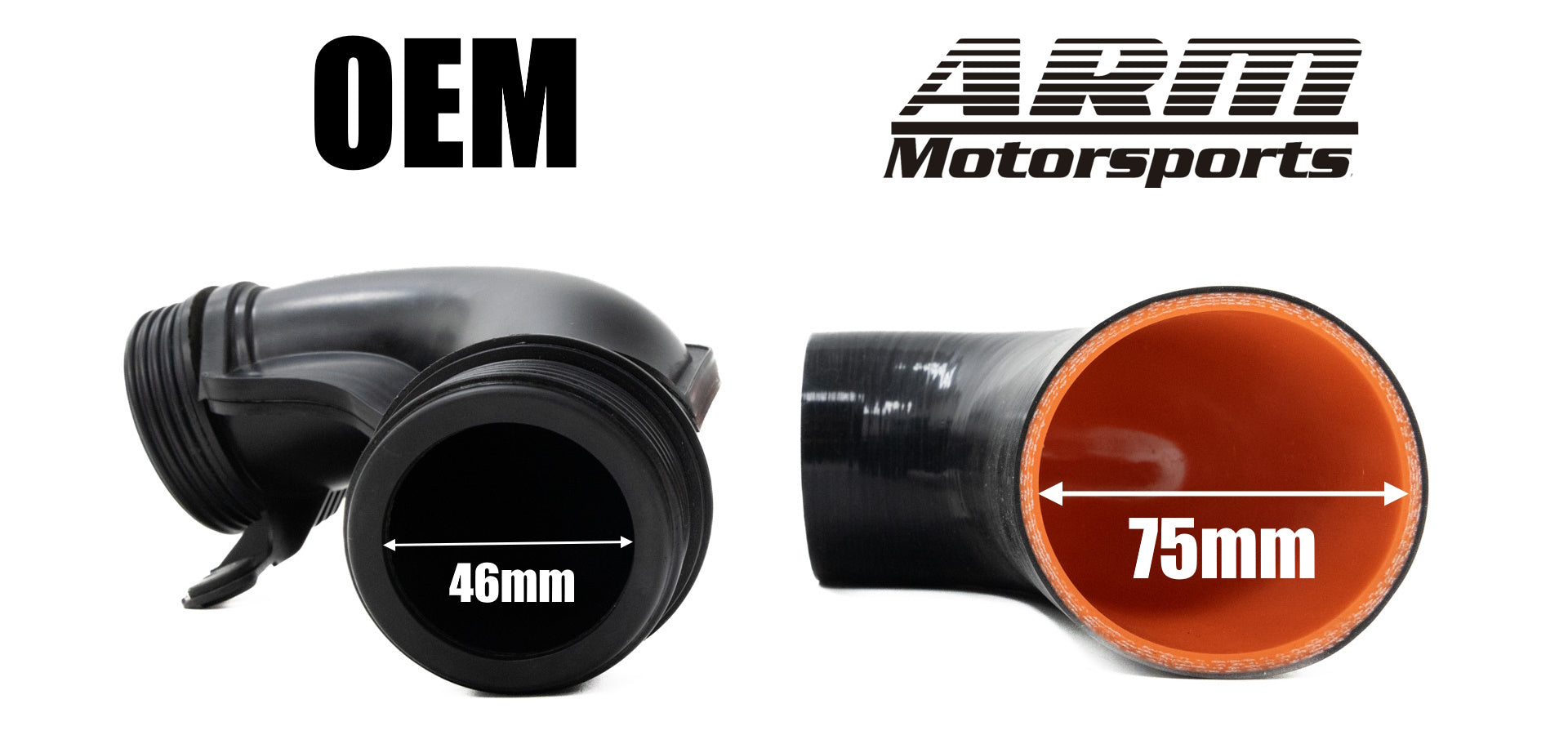

To make this happen we completely redesigned the N55 turbo inlet.  The ARM N55 Inlet inserts into the OEM turbo with factory-like precision.  It then rapidly expands to 3" and this size is maintained throughout the rest of the intake all the way to the high-flow air filter.  While the OEM N55 inlet reduces to 46mm before the turbo inlet, the ARM N55 Inlet measures in at 75mm, a 63% increase over OEM.

N55 Intake Inlet

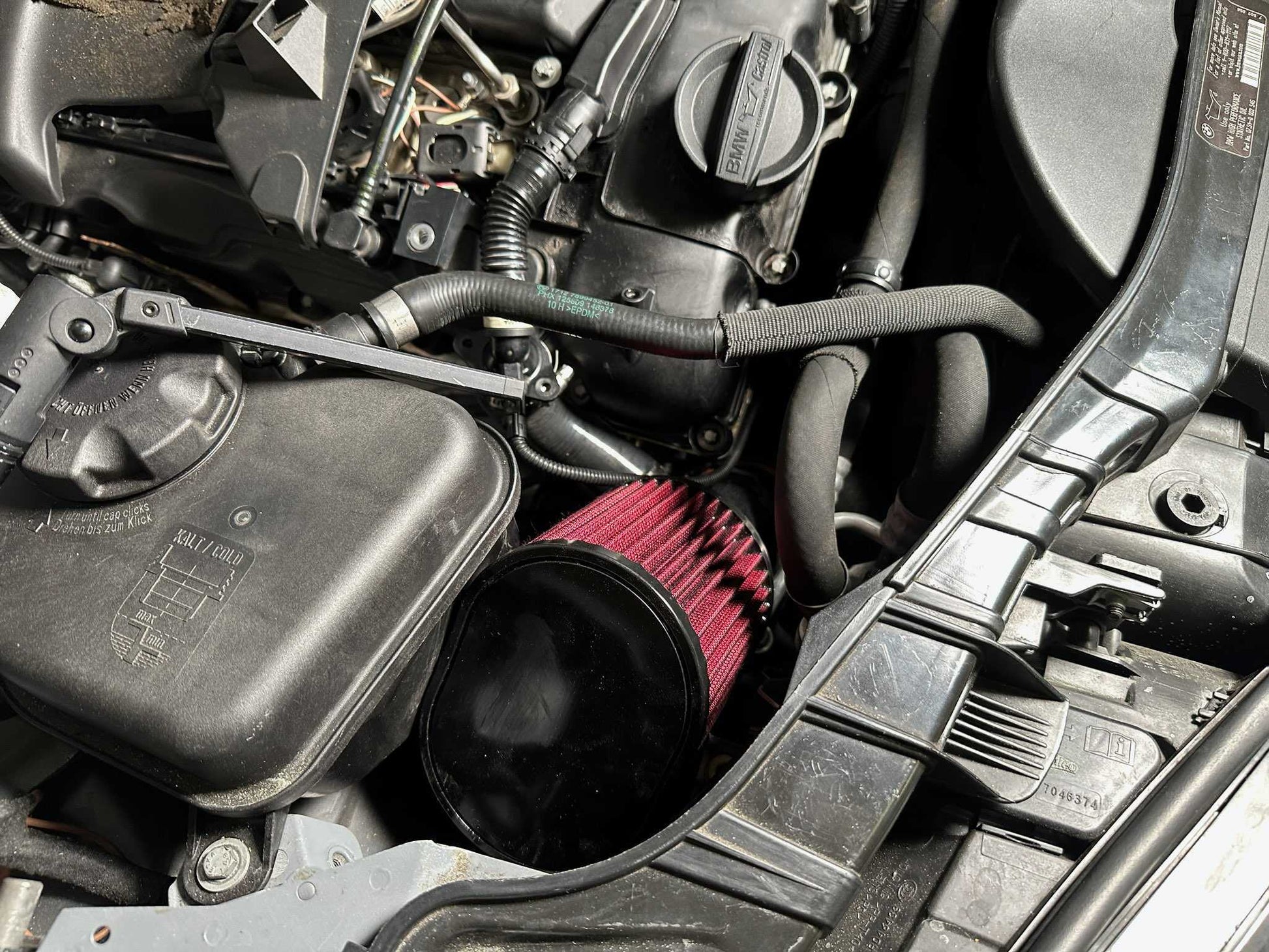

The ARM N55 Intake utilizes the largest possible air filter for the location behind the passenger side headlight.  This air filter measures a full 124 cubic inches of filter surface area, in an oval design to allow it to fit in-between the headlight housing and coolant expansion tank.

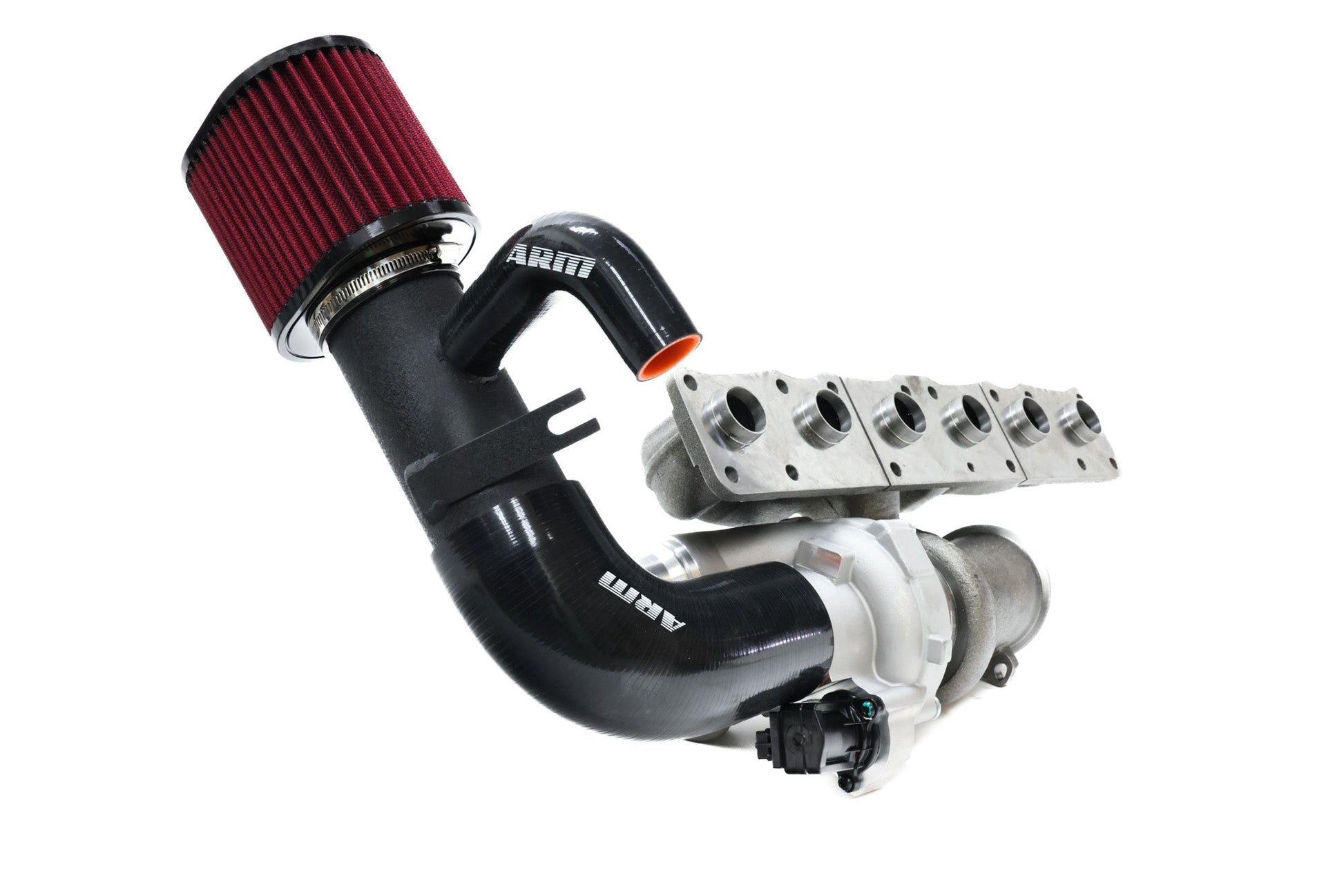

N55 Intake

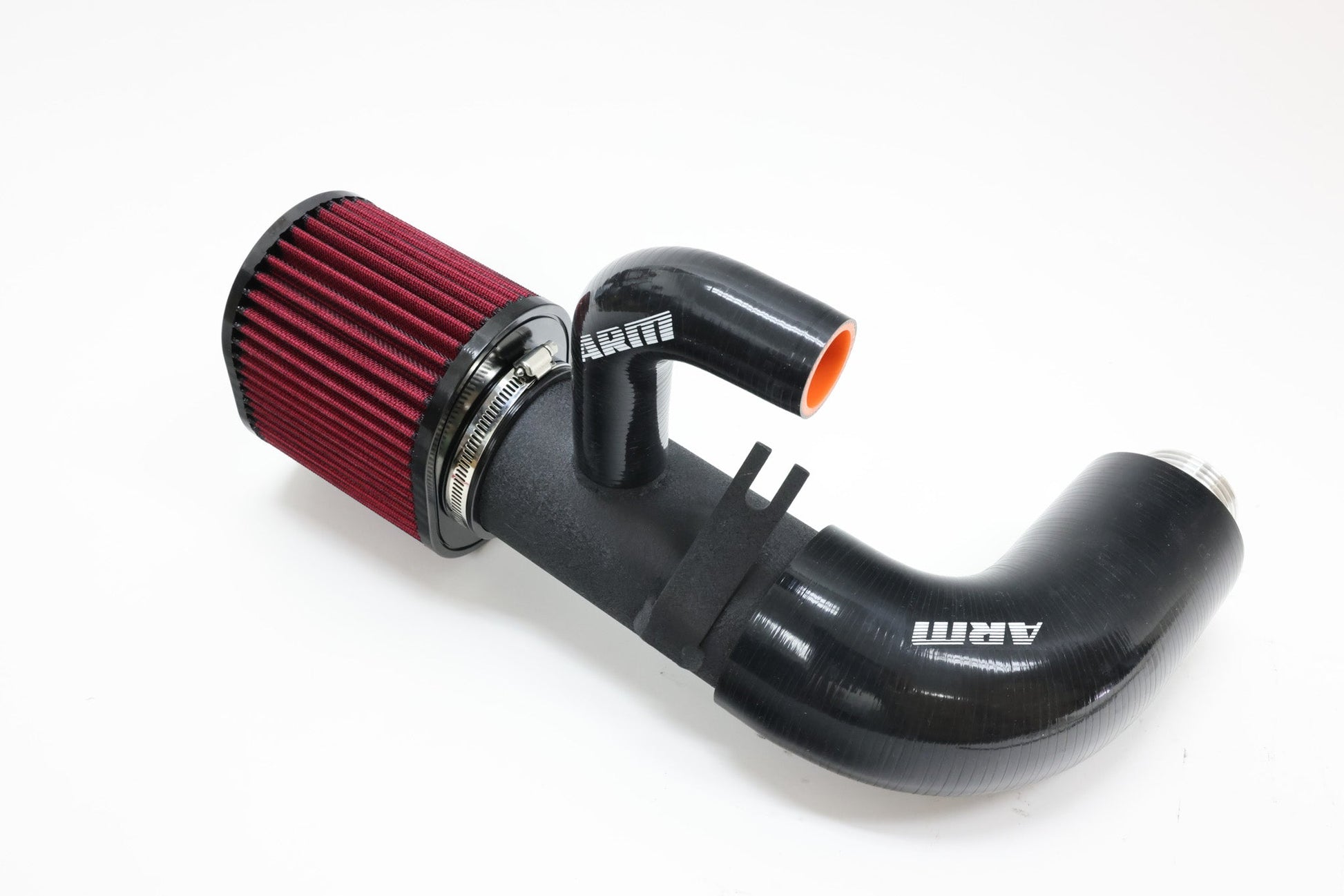

At the center of the ARM N55 Intake is the primary intake runner pipe which has several important design features.  Firstly, it is where the MAF sensor is relocated, utilizing a CNC machined MAF flange which provides a secure seal between the two components.  Secondly, the ARM N55 Intake includes a PCV port on the intake tube to reconnect the PCV line.  This allows for proper function of the OEM PCV system.   Lastly, the ARM N55 Intake is designed with an open-ended bracket to keep the filter stable and secure during aggressive driving.

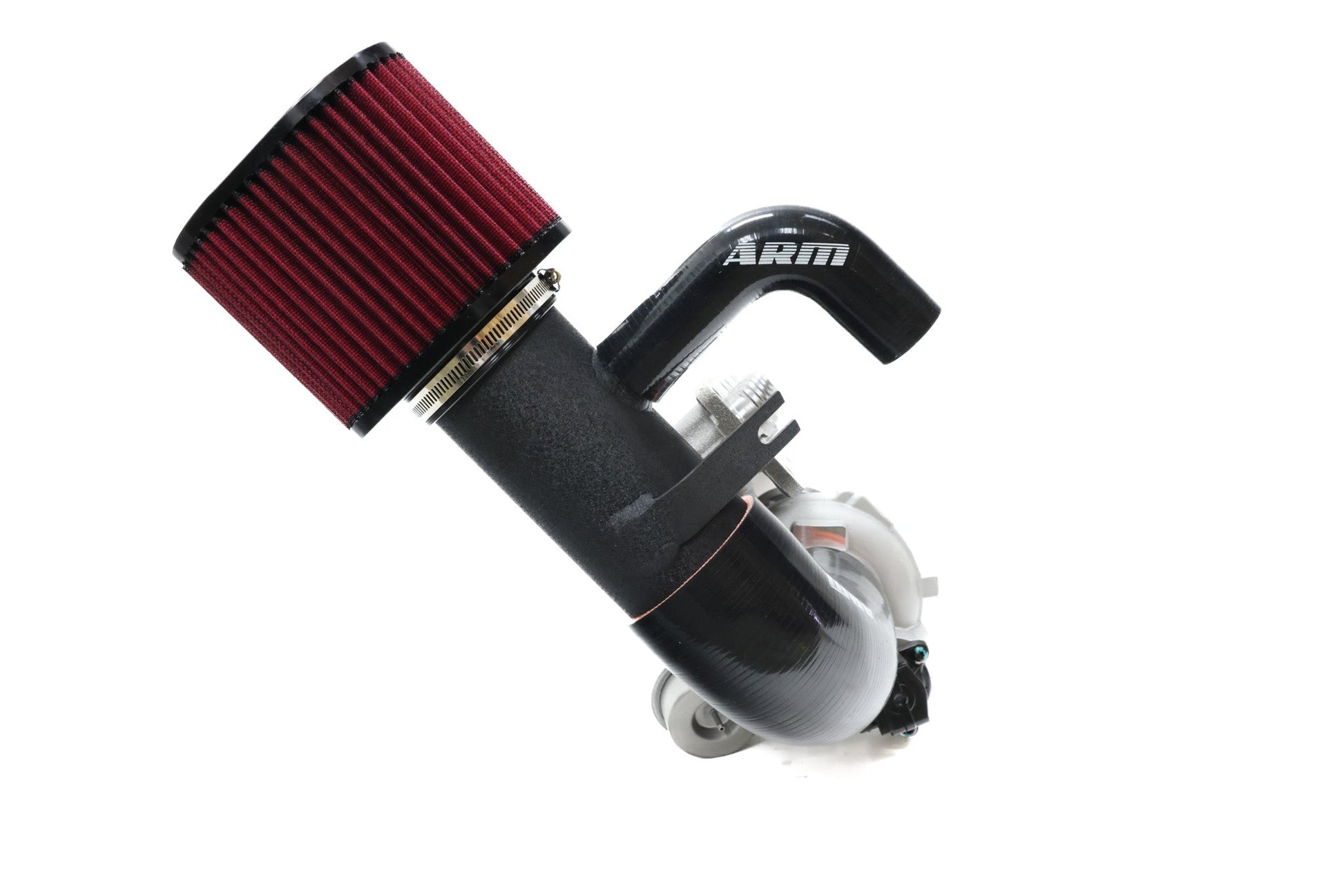

N55 Intake



In order to relocate the filter to the front of the headlight we have included a MAF extension harness so there is no cutting or splicing of wires.  This harness simply clips into the original harness near the back of the engine and extends all the way to the new position for the MAF sensor on the precision machined ARM N55 MAF housing on the intake pipe.


N55 Intake

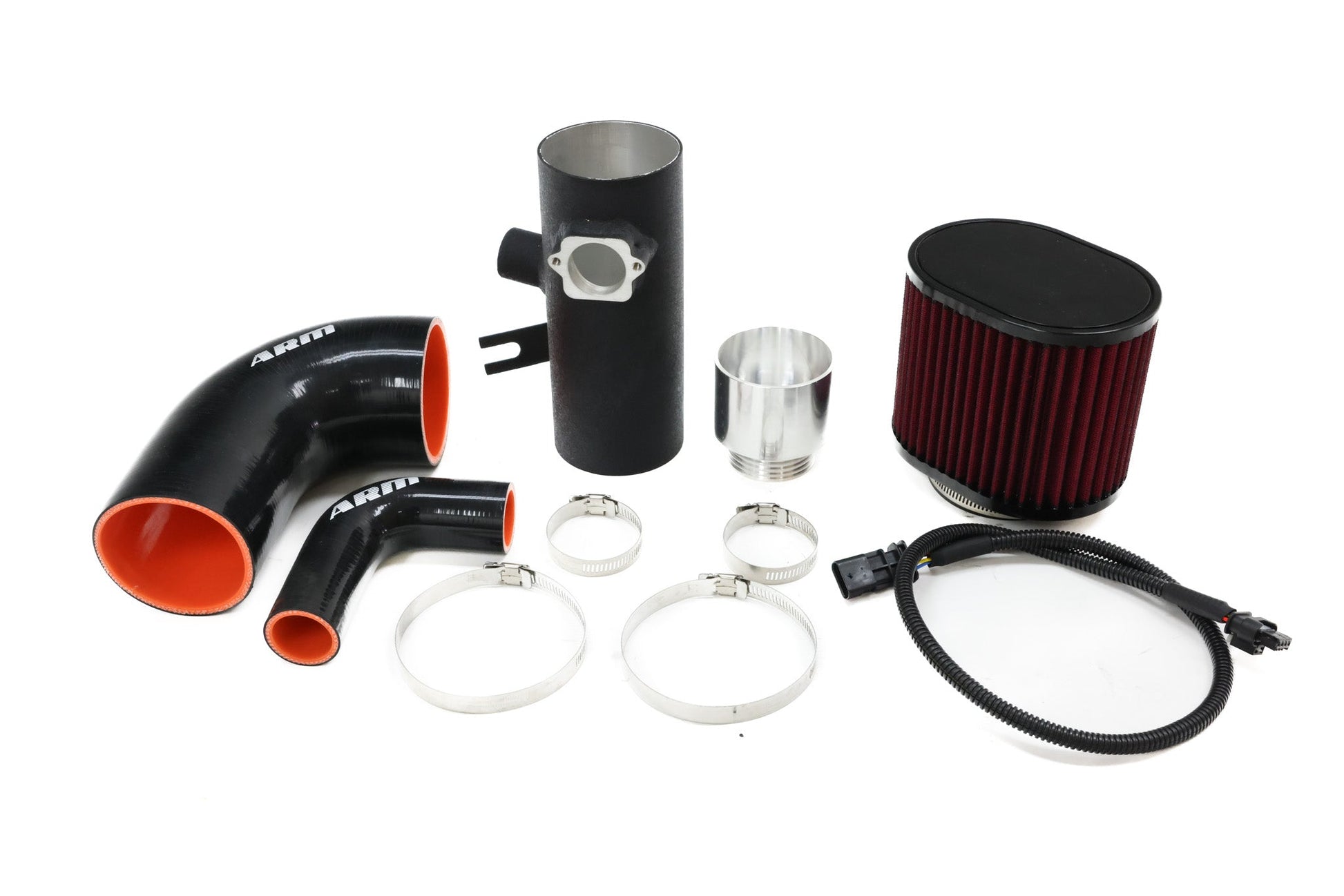

IN THE BOX

• ARM N55 Turbo Inlet Adapter
• ARM Intake Silicone Coupler
• ARM Intake Runner Pipe
• ARM High-Flow Air Filter
• ARM PCV Hose
• MAF Extension Harness
• Clamps


FITMENT GUIDE

Make Model Submodel Engine
BMW E82 135i N55 3.0L
BMW E88 135i N55 3.0L
BMW E82 135is N55 3.0L
BMW E90 335i N55 3.0L
BMW E90 335xi N55 3.0L
BMW E92 335i N55 3.0L
BMW E92 335xi N55 3.0L
BMW E93 335i N55 3.0L


ARM MOTORSPORTS LIFETIME WARRANTY

Every ARM Motorsports product is backed by a lifetime warranty which is automatically issued at the time of purchase. Your warranty protects you against any defects in craftsmanship or fitment. The warranty entitles you to a replacement unit.

This product is for Off-Road Use Only. Items sold for off-road use only are illegal to use on public roads in most states and provinces. This product is intended for racing vehicles which may never be used on a public road.
